Thông số kỹ thuật phụ kiện áp lực
Thông số kỹ thuật phụ kiện áp lực:
Các cỡ: Từ 1/8” đến 4”
Dùng cho: Xăng dầu, Gas, Khí, CN đóng tàu, CN điện lạnh...
Xuất xứ: Trung Quốc, Nhật Bản...

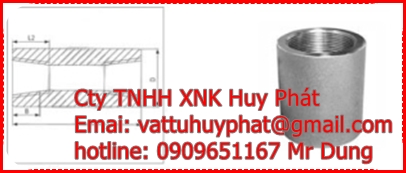

Hafl coupling B16.11 #3000 -MĂNG XÔNG #3000
|
THREADED COUPLING |
|||||||||
|
Nominal |
End to End |
End Wall Thickness |
Length of Thread (min) |
||||||
|
E |
F |
Cl.min |
|||||||
|
SIZE DN(mm) |
inch |
3000LB |
6000LB |
3000LB |
6000LB |
3000LB |
6000LB |
NPT |
Rc |
|
Sch80 |
Sch160 |
Sch80 |
Sch160 |
Sch80 |
Sch160 |
||||
|
6 |
1/8 |
32 |
19 |
- |
5 |
- |
6.5 |
6.5 |
|
|
8 |
1/4 |
35 |
25 |
27 |
5 |
6.5 |
8 |
10 |
|
|
10 |
3/8 |
38 |
25 |
27 |
5 |
6.5 |
9 |
10.5 |
|
|
15 |
1/2 |
48 |
32 |
33 |
6.5 |
8 |
11 |
13.5 |
|
|
20 |
3/4 |
51 |
37 |
38 |
6.5 |
8 |
12.5 |
14 |
|
|
25 |
1 |
60 |
41 |
43 |
9.5 |
11 |
14.5 |
17.5 |
|
|
32 |
1.1/4 |
67 |
44 |
46 |
9.5 |
11 |
17 |
18 |
|
|
40 |
1.1/2 |
76 |
44 |
48 |
11 |
12.5 |
18 |
18.5 |
|
|
50 |
2 |
86 |
48 |
51 |
12.5 |
16 |
19 |
19 |
|
|
65 |
2.1/2 |
92 |
60 |
64 |
16 |
19 |
23.5 |
29 |
|
|
80 |
3 |
108 |
65 |
68 |
19 |
22 |
26 |
30.5 |
|
|
100 |
4 |
121 |
68 |
75 |
22 |
28.5 |
27.5 |
33
|
|

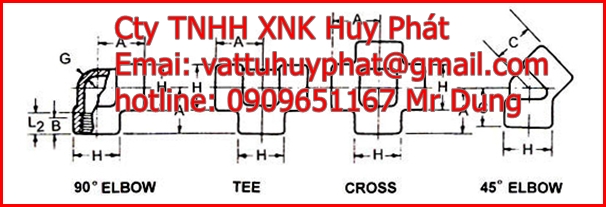

Thông số kỹ thuật phụ kiện áp lực:
|
DN (mm) |
Nom. Pipe Size (inch) |
Center to End Elbows, Tees, Cross A (mm) |
Center to End 45o Elbow C (mm) |
Outside Diameter of Band H (mm) |
Minimum Wall Thickness G (mm) |
Length of Thread Min. (mm) |
|||||||||
|
1500 |
3000 |
6000 |
1500 |
3000 |
6000 |
1500 |
3000 |
6000 |
1500 |
3000 |
6000 |
B |
L2 |
||
|
6 |
1/8 |
21 |
21 |
25 |
17 |
17 |
19 |
22 |
22 |
25 |
3.18 |
3.18 |
6.35 |
6.4 |
6.7 |
|
8 |
1/4 |
21 |
25 |
28 |
17 |
19 |
22 |
22 |
25 |
33 |
3.18 |
3.30 |
6.60 |
8.1 |
10.2 |
|
10 |
3/8 |
25 |
28 |
33 |
19 |
22 |
25 |
25 |
33 |
38 |
3.18 |
3.51 |
6.98 |
9.1 |
10.4 |
|
15 |
1/2 |
28 |
33 |
38 |
22 |
25 |
28 |
33 |
38 |
46 |
3.18 |
4.09 |
8.15 |
10.9 |
13.6 |
|
20 |
3/4 |
33 |
38 |
44 |
25 |
28 |
33 |
38 |
46 |
56 |
3.18 |
4.32 |
8.53 |
12.7 |
13.9 |
|
25 |
1 |
38 |
44 |
51 |
28 |
33 |
35 |
46 |
56 |
62 |
3.68 |
4.98 |
9.93 |
14.7 |
17.3 |
|
32 |
1.1/4 |
44 |
51 |
60 |
33 |
35 |
43 |
56 |
62 |
75 |
3.89 |
5.28 |
10.59 |
17.0 |
18.0 |
|
40 |
1.1/2 |
51 |
60 |
64 |
35 |
43 |
44 |
62 |
75 |
84 |
4.01 |
5.56 |
11.70 |
17.8 |
18.4 |
|
50 |
2 |
60 |
64 |
83 |
43 |
44 |
52 |
75 |
84 |
102 |
4.27 |
7.14 |
12.09 |
19.0 |
19.2 |
|
65 |
2.1/2 |
76 |
83 |
95 |
52 |
52 |
64 |
92 |
102 |
121 |
5.61 |
7.65 |
15.29 |
23.6 |
28.9 |
|
80 |
3 |
86 |
95 |
106 |
64 |
64 |
79 |
109 |
121 |
146 |
5.99 |
8.84 |
16.64 |
25.9 |
30.5 |
|
100 |
4 |
106 |
114 |
114 |
79 |
79 |
79 |
146 |
152 |
152 |
6.55 |
11.18 |
18.67 |
27.7 |
33.0 |

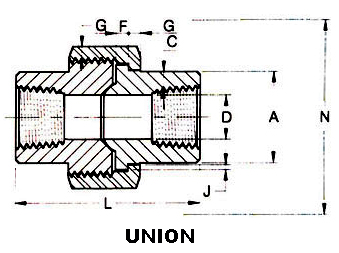

Thông số kỹ thuật phụ kiện áp lực:
|
Nom. Pipe size |
Pipe End
Min. A |
Socket Bore Dia.
B |
Socket Wall
Min. C |
Water Way Bore
D |
Laying Length
Min. E |
Male Flange
Min. F |
Nut
Min. G |
Thrds. Per 25.4mm
H |
Beaning
Min. J |
Depth of Socket Min. K |
Length Assem. Nom.
L |
Clear Assem. Nut
N |
|
|
(mm) |
(inch) |
||||||||||||
|
6 |
1/8 |
21.8 |
11.18 10.67 |
3.18 |
7.59 6.07 |
22.4 19.1 |
3.18 |
3.18 |
16 |
1.24 |
9.7 |
41.4 |
50.8 |
|
8 |
1/4 |
21.8 |
14.61 14.10 |
3.30 |
10.01 8.48 |
22.4 19.1 |
3.18 |
3.18 |
16 |
1.24 |
9.7 |
41.4 |
50.8 |
|
10 |
3/8 |
25.9 |
18.03 17.53 |
3.51 |
13.28 11.76 |
26.9 20.6 |
3.43 |
3.43 |
14 |
1.37 |
9.7 |
46.0 |
55.9 |
|
15 |
1/2 |
31.2 |
22.23 21.73 |
4.09 |
16.56 15.04 |
26.9 20.6 |
3.68 |
3.68 |
14 |
1.50 |
9.7 |
49.0 |
58.4 |
|
20 |
3/4 |
37.1 |
27.56 27.05 |
4.27 |
21.69 20.17 |
31.8 25.4 |
4.06 |
4.06 |
11 |
1.68 |
12.7 |
56.9 |
66.0 |
|
25 |
1 |
45.5 |
34.29 33.78 |
4.98 |
27.41 25.88 |
34.3 26.2 |
4.57 |
4.45 |
11 |
1.85 |
12.7 |
62.0 |
78.7 |
|
32 |
1.1/4 |
54.9 |
43.05 42.55 |
5.28 |
35.81 34.29 |
40.6 32.5 |
5.33 |
5.21 |
11 |
2.13 |
12.7 |
71.1 |
94.0 |
|
40 |
1.1/2 |
61.5 |
49.15 48.64 |
5.54 |
41.66 40.13 |
42.2 34.0 |
5.84 |
5.59 |
10 |
2.31 |
12.7 |
76.5 |
111.8 |
|
50 |
2 |
75.2 |
61.62 61.11 |
6.05 |
53.26 51.74 |
45.5 37.3 |
6.60 |
6.35 |
10 |
2.69 |
15.7 |
86.1 |
132.1 |
|
65 |
2.1/2 |
91.7 |
74.45 73.81 |
7.67 |
64.24 61.19 |
61.7 52.1 |
7.49 |
7.11 |
8 |
3.07 |
15.7 |
102.4 |
149.9 |
|
80 |
3 |
109.2 |
90.42 89.79 |
8.31 |
79.45 76.40 |
63.8 53.6 |
8.26 |
8.00 |
8 |
3.53 |
15.7 |
109.0 |
175.3 |

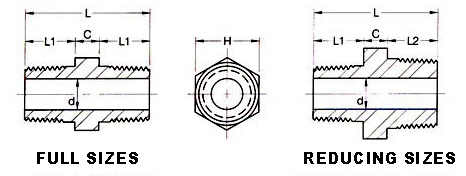

THÔNG SỐ KỸ THUẬT Kép thép ren A105:
|
Nom. Pipe size |
C |
L1 |
L |
d |
H |
||
|
(mm) |
(inch) |
3000 |
6000 |
||||
|
6 |
1/8 |
6.0 |
10.0 |
26.0 |
4.0 |
--- |
12.0 |
|
8 |
1/4 |
8.0 |
14.0 |
36.0 |
6.4 |
--- |
17.0 |
|
10 |
3/8 |
8.0 |
14.0 |
36.0 |
9.2 |
4.3 |
19.0 |
|
15 |
1/2 |
9.0 |
19.0 |
47.0 |
11.8 |
6.4 |
24.0 |
|
20 |
3/4 |
10.0 |
19.0 |
48.0 |
15.6 |
11.1 |
30.0 |
|
25 |
1 |
11.0 |
24.0 |
59.0 |
20.7 |
15.2 |
35.0 |
|
32 |
1.1/4 |
12.0 |
24.0 |
60.0 |
29.5 |
22.8 |
46.0 |
|
40 |
1.1/2 |
14.0 |
24.0 |
62.0 |
34.0 |
28.0 |
50.0 |
|
50 |
2 |
16.0 |
26.0 |
68.0 |
42.9 |
38.2 |
65.0 |
|
65 |
2.1/2 |
18.0 |
38.0 |
94.0 |
53.8 |
--- |
80.0 |
|
80 |
3 |
20.0 |
40.0 |
100.0 |
66.5 |
--- |
95.0 |
|
100 |
4 |
24.5 |
40.0 |
105.0 |
87.3 |
--- |
125.5 |
|
Nom. Pipe size |
C |
L1 |
L2 |
L |
d |
H |
||
|
(mm) |
(inch) |
3000 |
6000 |
|||||
|
10x8 |
3/8x1/4 |
8.0 |
14.0 |
14.0 |
36.0 |
6.4 |
--- |
19.0 |
|
15x8 |
1/2x1/4 |
9.0 |
19.0 |
14.0 |
42.0 |
6.4 |
--- |
24.0 |
|
15x10 |
1/2x3/8 |
9.0 |
19.0 |
14.0 |
42.0 |
9.2 |
4.3 |
24.0 |
|
20x8 |
3/4x1/4 |
10.0 |
19.0 |
14.0 |
43.0 |
6.4 |
--- |
30.0 |
|
20x10 |
3/4x3/8 |
10.0 |
19.0 |
14.0 |
43.0 |
9.2 |
4.3 |
30.0 |
|
20x15 |
3/4x1/2 |
10.0 |
19.0 |
19.0 |
48.0 |
11.8 |
6.4 |
30.0 |
|
25x10 |
1x3/8 |
11.0 |
24.0 |
19.0 |
49.0 |
9.2 |
4.3 |
35.0 |
|
25x15 |
1x1/2 |
11.0 |
24.0 |
19.0 |
54.0 |
11.8 |
6.4 |
35.0 |
|
25x20 |
1x3/4 |
11.0 |
24.0 |
19.0 |
54.0 |
15.6 |
11.1 |
35.0 |
|
32x15 |
1.1/4x1/2 |
12.0 |
24.0 |
19.0 |
55.0 |
11.8 |
6.4 |
46.0 |
|
32x20 |
1.1/4x3/4 |
12.0 |
24.0 |
19.0 |
55.0 |
15.6 |
11.1 |
46.0 |
|
32x25 |
1.1/4x1 |
12.0 |
24.0 |
24.0 |
60.0 |
20.7 |
15.2 |
46.0 |
|
40x20 |
1.1/2x3/4 |
14.0 |
24.0 |
19.0 |
57.0 |
15.6 |
11.1 |
50.0 |
|
40x25 |
1.1/2x1 |
14.0 |
24.0 |
24.0 |
62.0 |
20.7 |
15.2 |
50.0 |
|
40x32 |
1.1/2x1.1/4 |
14.0 |
24.0 |
24.0 |
62.0 |
29.5 |
22.8 |
50.0 |
|
50x25 |
2x1 |
16.0 |
26.0 |
24.0 |
66.0 |
20.7 |
15.2 |
65.0 |
|
50x32 |
2x1.1/4 |
16.0 |
26.0 |
24.0 |
66.0 |
29.5 |
22.8 |
65.0 |
|
50x40 |
2x1.1/2 |
16.0 |
26.0 |
24.0 |
66.0 |
34.0 |
28.0 |
65.0 |
|
65x32 |
2.1/2x1.1/4 |
18.0 |
38.0 |
24.0 |
80.0 |
29.5 |
22.8 |
80.0 |
|
65x40 |
2.1/2x1.1/2 |
18.0 |
38.0 |
24.0 |
80.0 |
34.0 |
28.0 |
80.0 |
|
65x50 |
2.1/2x2 |
18.0 |
38.0 |
26.0 |
82.0 |
42.9 |
38.2 |
80.0 |
|
80x40 |
3x1.1/2 |
20.0 |
40.0 |
24.0 |
84.0 |
34.0 |
28.0 |
95.0 |
|
80x50 |
3x2 |
20.0 |
40.0 |
26.0 |
86.0 |
42.9 |
38.2 |
95.0 |
|
80x65 |
3x2.1/2 |
20.0 |
40.0 |
38.0 |
98.0 |
53.8 |
--- |
95.0 |
